Windshield wiper mechanisms are junk, parts/upgrade options available?


  • Please log in to reply
8 replies to this topic

#1 KFunk740

KFunk740

    Advanced Member

  • Members
  • PipPipPip
  • 275 posts
  • Location:Athens, Ohio
  • Cars:1965 Datsun L320, 1974 BMW 2002, 1992 Mazda Miata, etc.

Posted 10 December 2012 - 08:31 AM

OK, I daily drive my 320, and the windshield wipers are crap. I made sure the electric motor is clean inside and out, everything lubed and tightened, found some rubber bushings to replace the rotted/missing ones where stuff mounts to the firewall, replaced the blades themselves, applied rain-x, etc.

Still, on their best day, they don't work very well, and fail quite often for various reasons. The driver's side blade barely touches the windshield in the center. The whole mechanism just doesn't seem very well designed or built compared to newer cars.

Now the splines where where the wiper arms attach have stripped out, flinging a wiper arm off the other night. I reattached it by putting some thin metal around the shaft as a shim.

I tried looking up wiper part numbers in the 320 parts manual and putting them into nissanparts.cc, but nothing comes up as available.

Anybody have solutions that I don't know about that hold up to daily driving? Maybe better parts from later trucks fit? Any specific wiper arms I should be using, or know of a source for the splined shafts?

Thanks for the help.

#2 erichwaslike

erichwaslike

    winning.

  • Senior Member
  • PipPipPipPipPip
  • 2,526 posts
  • Location:la habra
  • Cars:67 rl411, 66 pl411 racecar, 67 pl411 rat, 67 wrl411,70 521,71 521,84 720, 86 suzuki sami

Posted 10 December 2012 - 09:17 AM

the splined shaft is gona be the same as 411,520,521 and 510 casue i know you can swap the arms between those. the blade not touchin is an issue with the tension on the holder or arm.

Ratsun: where its no longer a debate of function > form

but a debate between Down syndrome ingenuity > someone taking a shit in the gas tank


you read my post like a woman would, interpreting.... not actually reading.

wait skib loves the cock

Should I do it to myself or get skib to hammer me?

Ever hear that saying about people in glass houses Syncro?


Ill make a special trip to cali and find your ratty K5 wearing slut bag of a datto




Take some time off, make your signature a little longer...everything will work out







i kind of want to be in your sig party/orgy





















#3 datzenmike

datzenmike

    KING RAT

  • User Administrator
  • 71,695 posts
  • Location:Vancouver Island
  • Cars:'74 710 sedan, '76 710. prevoius... '78 620, '71 521, '68 510 new '76 B-210

Posted 10 December 2012 - 09:36 AM

The part that sticks out that the arm attaches to is called the pivot I think. The pivots wear inside and dirt and water get in pst the rubber boots and wash the grease away. My 620 pivots I managed to get out and apart and grease them and there was a big improvement. I don't know if you got that far or not.

I've replaced my 36 amp 620 alternator with a 90 amp output one from a Pymouth Reliant and the extra voltage at low speeds keeps them from slowing down at stops.

Maybe new larger gauge wire to the motor to reduce voltage drop?
Posted Image

#4 DanielC

DanielC

    Senior Member

  • Senior Member
  • PipPipPipPipPip
  • 4,721 posts
  • Location:West Linn,Or

Posted 10 December 2012 - 09:59 AM

On this page of my "Ratsun Datsun" thread, I have some details of the wipers on a 521, and the work I did on them.
http://community.rat...1/page__st__160
It may give you some Ideas, and you might see some parts from a 521 truck you could use on your 320.

#5 wayno

wayno

    Datsunahaulic

  • Senior Member
  • PipPipPipPipPipPipPipPipPipPip
  • 13,295 posts

Posted 10 December 2012 - 05:31 PM

It's kinda a pain in the ass to get out of there, but that yours even functions at all is very good, I was able to R&R my assembly by removing the inside of the glove box, that made it possible to move it sideways once out of the holes and drop it down on the passenger side leg area, I would suggest that yours needs a total lubing of all joints, and specifically the shafts that come out of the cab that the wiper arms connect to.

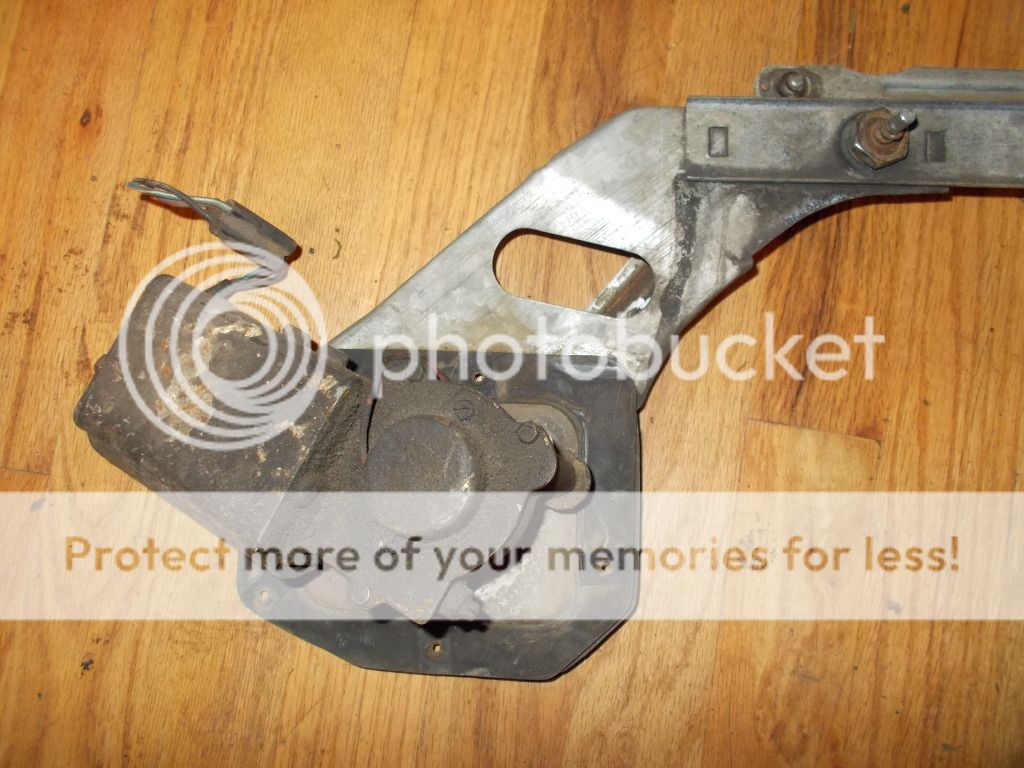

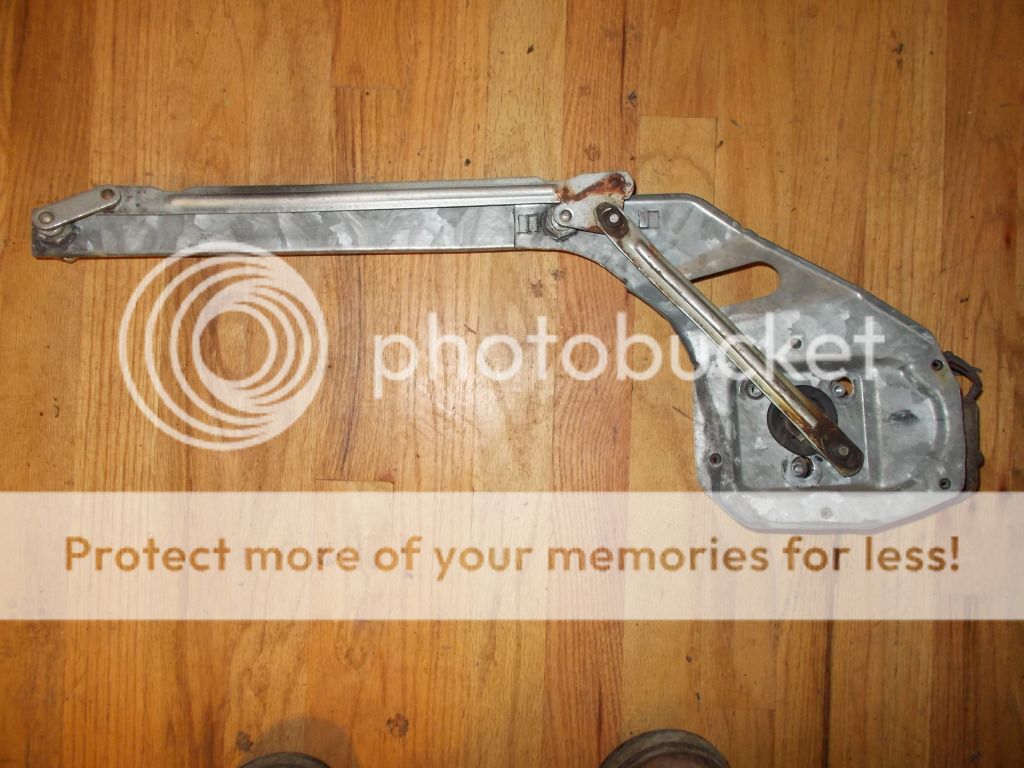

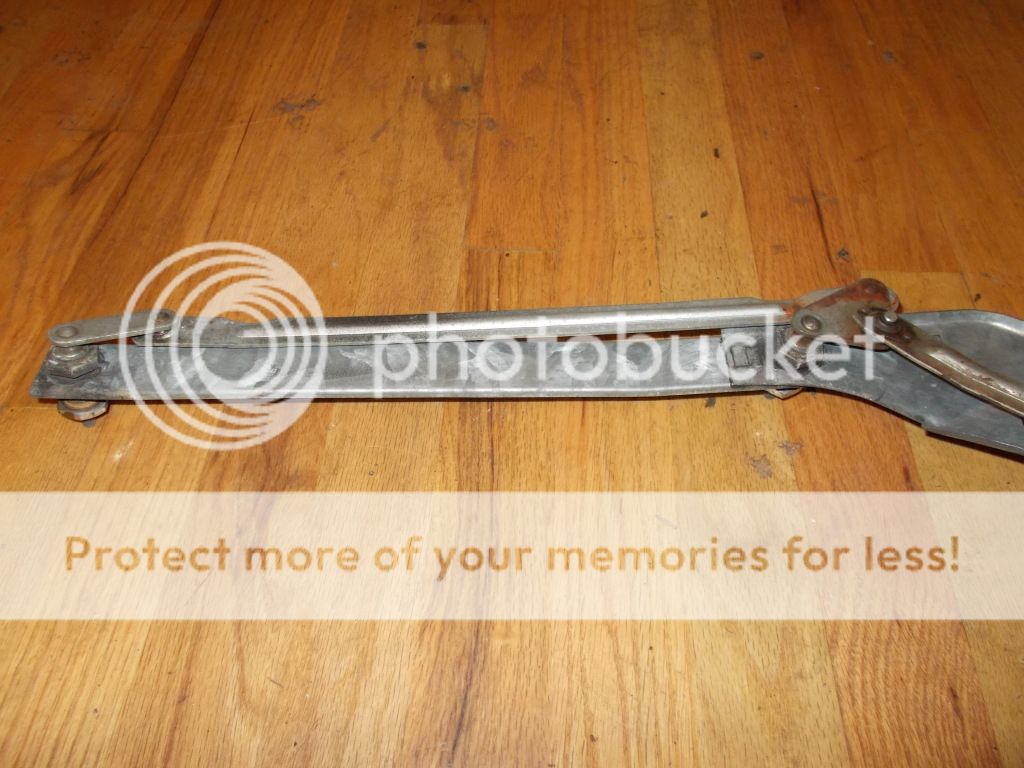

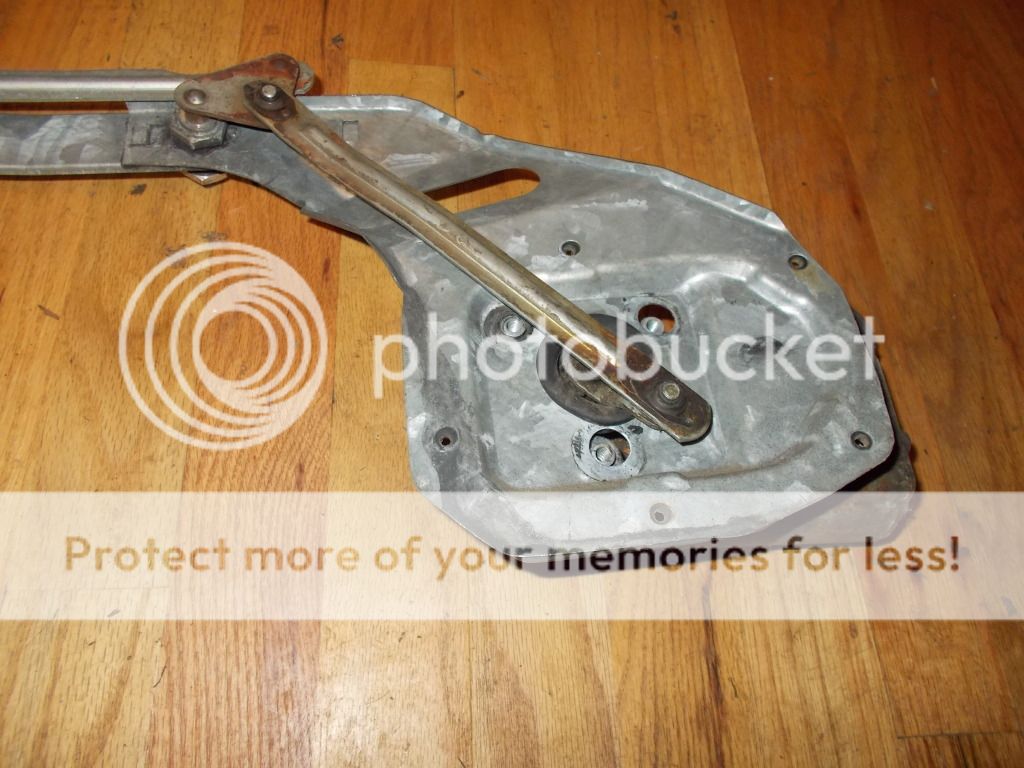

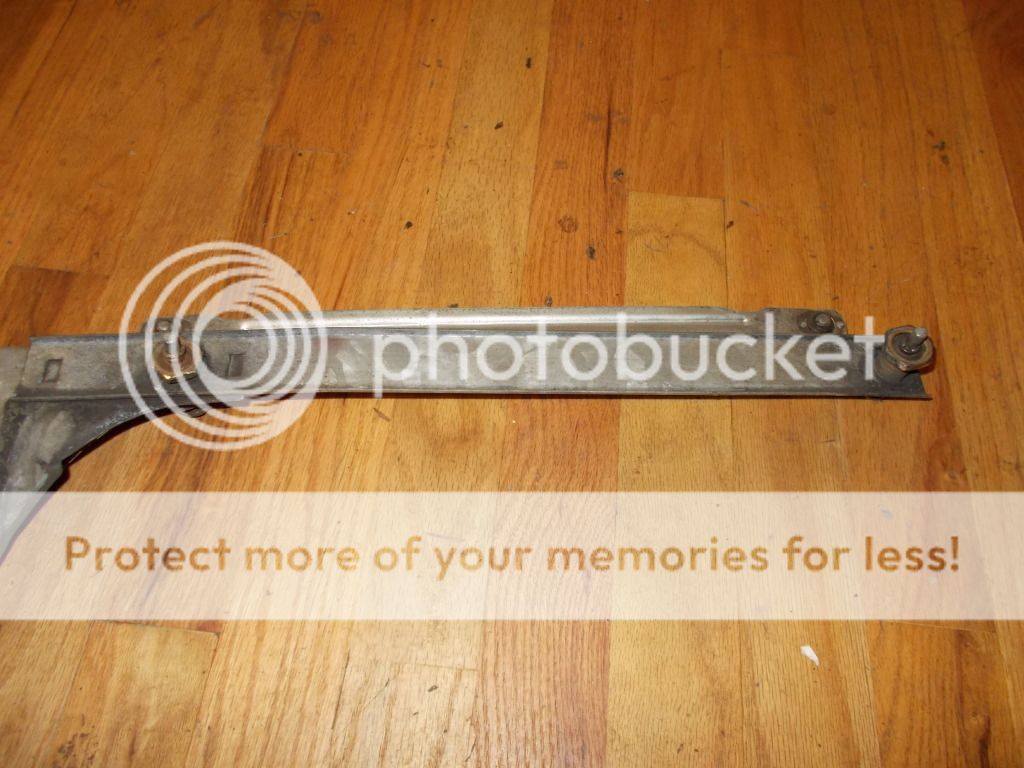

This is what the assembly looks like removed, not all the parts/screws are there, but it gives you an idea how it is made.
Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image
It is not easy to remove the exterior nuts and hardware holding the shafts in place, so take your time and use products like PB blaster/penetrating oils before you try to loosen things.
I am sorry to say this, but I don't beleave 520/521 wiper hardware is going to work on your 320, it seems to be a differant size, the photos above are from a 65 assembly.

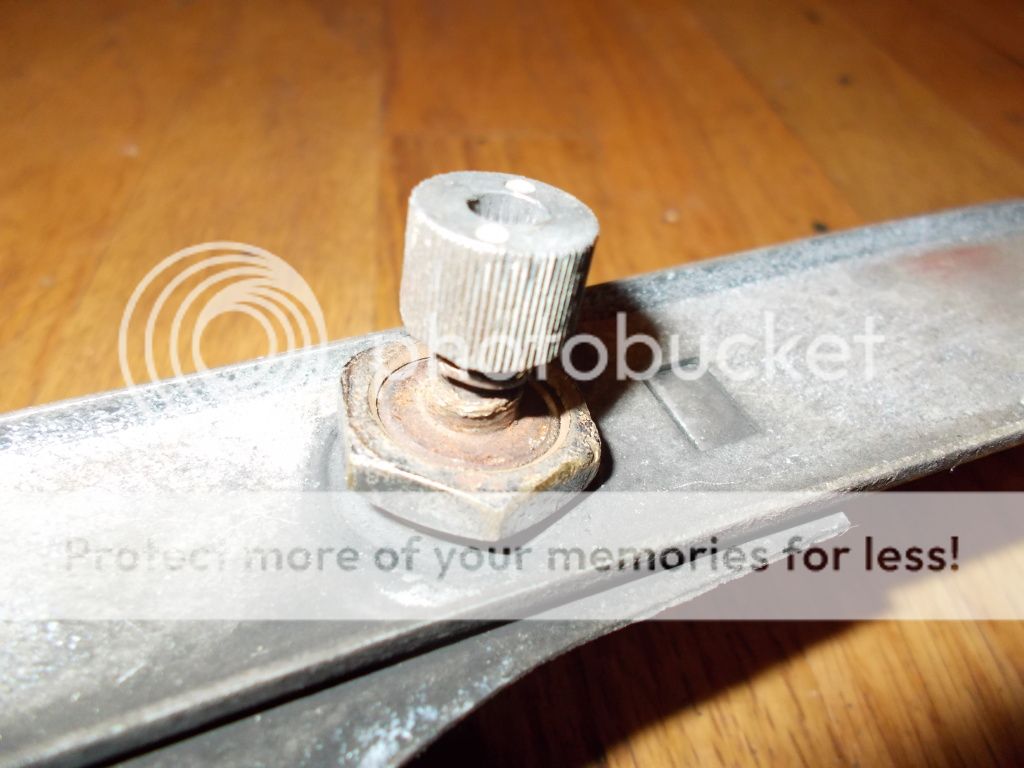

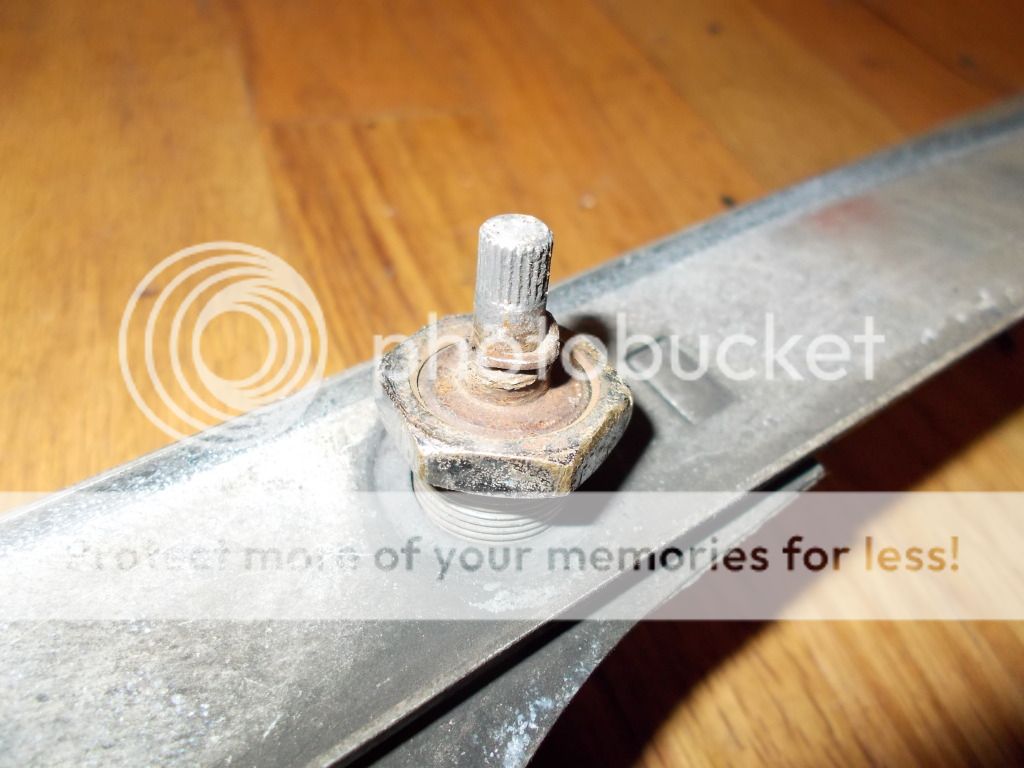

I am not sure what you meant about the splines being stripped, which photo below did your shaft look like when the wiper fell off?
