How to: Hydraulic E-Brake in a Datsun 510


  • Please log in to reply
37 replies to this topic

#1 ariascarlos1990

ariascarlos1990

    Master

  • Senior Member
  • PipPipPipPipPip
  • 4,927 posts
  • Location:Portland, Or
  • Cars:'78 620, '71 Goon, '02 WR426 Supermoto, ' 05 Ford super duty,

Posted 28 March 2012 - 10:29 PM

This here is a writeup for installing a Hydraulic e-brake into a Datsun 510. (install is most likely the same for other models depending on brake line location)

Here's a list of everything your going to need:

First things first is a hydraulic e-brake. I got mine off Ebay for $84.90 with free shipping. The SICKSPEED one.

2X 15" 90° -3 to straight -3 I chose steel braided line. RUSSELL PN# 655032

1X -3 3/8"x24 inverted flare male. usually sold in a pack of two but, you only need one. RUSSELL PN# 643961

1X 3/8"x24 -3 female brake fitting. RUSSELL PN# 641291

1X 7/16"x20 -3 male brake fitting. RUSSELL PN# 641321

2X 3/16x3/16-24 Brake ends. EDELMANN PN# 121003

A drill and a drill bit. I don't remember the exact size I used but, it can't be that hard to figure out.

Your also going to need a double flare kit. I rented mine from autozone make sure you get the metric one.

Now for installing:

Before doing anything REMOVE THE DRIVELINE!!!

The first thing I did when installing the handbrake was move it to the spot I felt was most comfortable drilled then mounted it. *stay towards the center of the tunnel to avoid hitting the brake line.

Now drill the holes for the lines to run through the body and then hook them to the master cylinder on the e-brake then run the lines through the holes you just drilled to mock up where you need to cut your brake line.

Posted Image

Now that the lines are running though the body crawl under the car and cut where the end of the steel braided lines meet with the hardline.

Posted Image

Now slip on the brake lines ends and grab your flaring tool. what you want to do when flaring is make sure the line is sticking out enough so the adapters bottom lip is hellaflush (lol) with end of the tubing.

Posted Image

Now your ready to double flare. (I'm not going to show how to do this there's google for that)

Posted Image

Now that both lines and double flared and you cleaned the brake fluid out of your eye your ready to install the fittings.

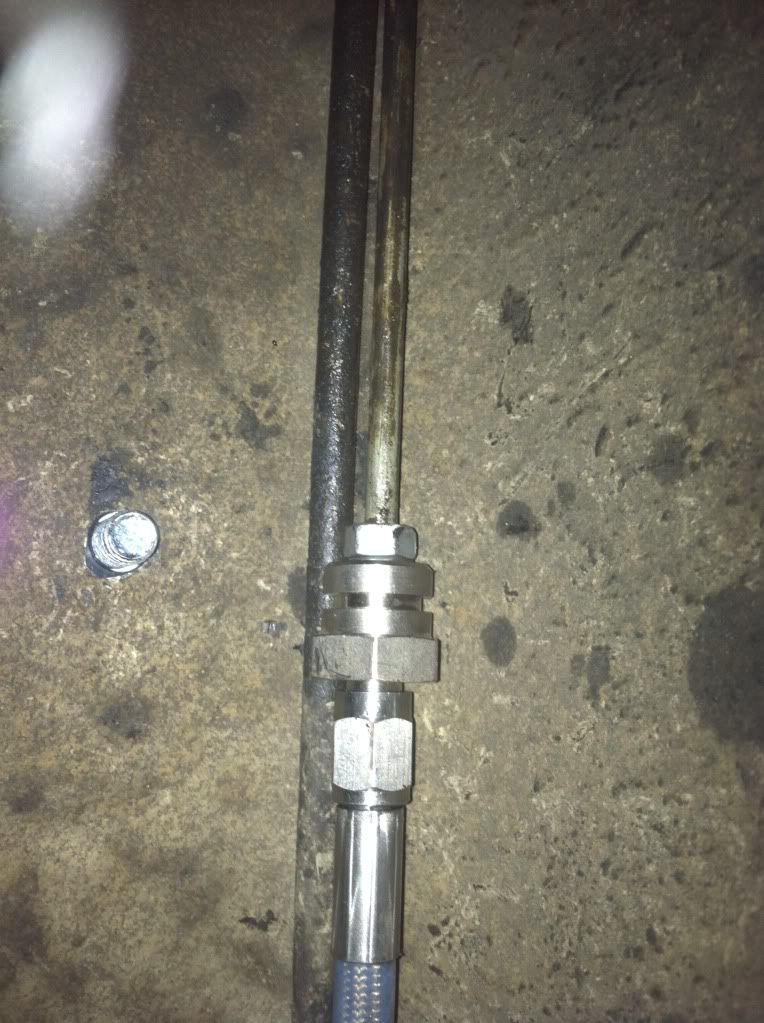

Install both the 3/8"x 24-3 female brake fittings to the end of the braided lines and connect them to the brake line ends.

Posted Image

Now just bleed your brakes as if the hydraulic e-brake is not even there.

One more thing is get some rubber grommets to put on the lines where they go through the body to keep them from rubbing.

Final product:
Posted Image

Thanks for reading hope this helps out.

#2 The Dat-side

The Dat-side

    Member

  • Senior Member
  • PipPipPipPipPip
  • 2,379 posts
  • Location:The Berg, Oregon
  • Cars:'71 4 door 510

Posted 29 March 2012 - 06:57 AM

This is very cool! Thanks for making it, now let's see some slides.

#3 erichwaslike

erichwaslike

    winning.

  • Senior Member
  • PipPipPipPipPip
  • 2,518 posts
  • Location:la habra
  • Cars:67 rl411, 66 pl411 racecar, 67 pl411 rat, 67 wrl411,70 521,71 521,84 720, 86 suzuki sami

Posted 29 March 2012 - 07:57 AM

ill be trying this soon on my 411. wont be using a sick speed master , gonan modify a stock datsun one to work, ill post how to on that for the cheap guys like me

Ratsun: where its no longer a debate of function > form

but a debate between Down syndrome ingenuity > someone taking a shit in the gas tank


you read my post like a woman would, interpreting.... not actually reading.

wait skib loves the cock

Should I do it to myself or get skib to hammer me?

Ever hear that saying about people in glass houses Syncro?


Ill make a special trip to cali and find your ratty K5 wearing slut bag of a datto




Take some time off, make your signature a little longer...everything will work out







i kind of want to be in your sig party/orgy





















#4 TheMission

TheMission

    Advanced Member

  • Members
  • PipPipPip
  • 158 posts
  • Location:Portland, OR
  • Cars:'72 240z

Posted 29 March 2012 - 08:13 AM

The inline setup seems to work, but you may see weird stuff with that handle moving when you hit the brakes and also if you even use the brake pedal when using the handle you'll get some wackiness as well (although that's rare that you'd ever do it).

A dual caliper drift brake for the rear of the 510 would be sweet as well!

Great How-To!
Click Here for my Build

_______Previous DIY's - '72 RHD Mini / '02 S2000 / '03 Scion tC Show Car_______
Posted Image

#5 Alex Datsun

Alex Datsun

    Senior Member

  • Senior Member
  • PipPipPipPip
  • 875 posts
  • Location:Lost City, Ca
  • Cars:S30zZz

Posted 29 March 2012 - 08:38 AM

Did you use dual calipers or just splined into the existinf brake system? Nice write up.




#6 erichwaslike

erichwaslike

    winning.

  • Senior Member
  • PipPipPipPipPip
  • 2,518 posts
  • Location:la habra
  • Cars:67 rl411, 66 pl411 racecar, 67 pl411 rat, 67 wrl411,70 521,71 521,84 720, 86 suzuki sami

Posted 29 March 2012 - 08:44 AM

this setup used the factory rear brakes. if it was a seporate caliper style it would have a seporate resivor and not be spliced into the rear brake lines.

Ratsun: where its no longer a debate of function > form

but a debate between Down syndrome ingenuity > someone taking a shit in the gas tank


you read my post like a woman would, interpreting.... not actually reading.

wait skib loves the cock

Should I do it to myself or get skib to hammer me?

Ever hear that saying about people in glass houses Syncro?


Ill make a special trip to cali and find your ratty K5 wearing slut bag of a datto




Take some time off, make your signature a little longer...everything will work out







i kind of want to be in your sig party/orgy





















#7 Rotary510

Rotary510

    BRAAP BRAAP BRAAAAAP!!!

  • Senior Member
  • PipPipPipPip
  • 445 posts
  • Location:Forest Grove, OREGON
  • Cars:510 w/ Mazda ROTARY 13B, Restored 72' 521, 06' Acura TL, 02 Dodge Dakota and more Datsuns...

Posted 29 March 2012 - 12:19 PM

I have been looking into doin this on my Rotary Dime. But I want one that actually "locks" when you park. Does this hydraulic e-brake lock in place? I have the brakelines already in my center console as I have a proportioning valve.
"I am from planet APEX"

#8 ariascarlos1990

ariascarlos1990

    Master

  • Senior Member
  • PipPipPipPipPip
  • 4,927 posts
  • Location:Portland, Or
  • Cars:'78 620, '71 Goon, '02 WR426 Supermoto, ' 05 Ford super duty,

Posted 29 March 2012 - 02:52 PM

Did you use dual calipers or just splined into the existinf brake system? Nice write up.

this setup used the factory rear brakes. if it was a seporate caliper style it would have a seporate resivor and not be spliced into the rear brake lines.


What he said^

I have been looking into doin this on my Rotary Dime. But I want one that actually "locks" when you park. Does this hydraulic e-brake lock in place? I have the brakelines already in my center console as I have a proportioning valve.


I forgot to say that. Yes it has a locking feature. I've been setting it before I go into work and when I got off it still is solid after holding for 10 hours. I've been doing this the past week with the same result.

#9 Tristin

Tristin

    the Kevin Bacon of Datsuns

  • Senior Member
  • PipPipPipPipPipPipPipPipPipPip
  • 14,356 posts
  • Location:Everett, Wa.
  • Cars:1969 Mint green 510 4dr. sedan

Posted 29 March 2012 - 04:10 PM

I would recommend that you add the final result pic from your build thread in here. That way people can see how its suppose to turn out. This is something that I have thought about doing, but since I now have a center console in my 510, I have nowhere to put the handle :( Maybe I can think on it and fab something up.

Good tutorial.

4 doors ..... no whores :crying:



and that is who i'm calling a deadbeat fuck.


#10 datzenmike

datzenmike

    KING RAT

  • User Administrator
  • 47,971 posts
  • Location:Vancouver Island
  • Cars:'78 620, '74 710 sedan, '76 710 goon

Posted 29 March 2012 - 04:26 PM

Why the flex lines? They always swell slightly when pressure is applied. Not really needed are they? I would have bent up some nice neat tubing runs that hug the tunnel.




Posted Image



#11 ariascarlos1990

ariascarlos1990

    Master

  • Senior Member
  • PipPipPipPipPip
  • 4,927 posts
  • Location:Portland, Or
  • Cars:'78 620, '71 Goon, '02 WR426 Supermoto, ' 05 Ford super duty,

Posted 29 March 2012 - 04:44 PM

I would recommend that you add the final result pic from your build thread in here. That way people can see how its suppose to turn out. This is something that I have thought about doing, but since I now have a center console in my 510, I have nowhere to put the handle :( Maybe I can think on it and fab something up.

Good tutorial.


Done. My next step is finding a center console I should of done that before the instal but, I got anxious staring at this thing. lol

Why the flex lines? They always swell slightly when pressure is applied. Not really needed are they? I would have bent up some nice neat tubing runs that hug the tunnel.


The steel braided lines are not needed but, will serve the same purpose with less of a hassle of bending tubing.

#12 bonvo

bonvo

    Dr. Frankenstein

  • Senior Member
  • PipPipPipPipPip
  • 9,779 posts
  • Location:la pine oregon
  • Cars:73 datsun 610(the zombie 610) 56 chevy 3600 77 620 kc 03 se-r

Posted 29 March 2012 - 07:50 PM

so for about 100 bucks you can have an e brake that actually holds the car in place and make it that much more fun i like it i might do this in the 610 since it currently has no e brake i dont feel like making cables for it

the first rule of Ratsun is you don't talk about Ratsun... no wait thats fight club.....


....the first rule of Ratsun is PICS OR BAN! :fu:



http://community.rat...on-resurection/
http://www.build-thr...1/#comment-5259

http://community.rat...-bought-a-what/



its like pikachu cuz its always his go to, the ol relaiable, looks cute kicks ass on the reg. and the 610 is charizard.... when ya really need to lay down some shit. lol - skib




#13 metalmonkey47

metalmonkey47

    Unka-Matt

  • Senior Member
  • PipPipPipPipPip
  • 8,934 posts
  • Location:Atlanta, GA
  • Cars:1970 240Z

Posted 30 March 2012 - 11:22 PM

This is a very cool setup. How do you like it so far?

...seems to me we are being held hostage by these candy-ass pussy, limp wrist, hanky twisting, girly-man, cry when Forrest Gump's mom died, crystal gazing, Om chanting, sandal wearing, whiny voiced, oh I broke a nail, fucks.


#14 ariascarlos1990

ariascarlos1990

    Master

  • Senior Member
  • PipPipPipPipPip
  • 4,927 posts
  • Location:Portland, Or
  • Cars:'78 620, '71 Goon, '02 WR426 Supermoto, ' 05 Ford super duty,

Posted 31 March 2012 - 06:49 AM

so for about 100 bucks you can have an e brake that actually holds the car in place and make it that much more fun i like it i might do this in the 610 since it currently has no e brake i dont feel like making cables for it


It was a little more then $100. lol

This is a very cool setup. How do you like it so far?


I love it. It locks the wheels up instantly.

#15 erichwaslike

erichwaslike

    winning.

  • Senior Member
  • PipPipPipPipPip
  • 2,518 posts
  • Location:la habra
  • Cars:67 rl411, 66 pl411 racecar, 67 pl411 rat, 67 wrl411,70 521,71 521,84 720, 86 suzuki sami

Posted 03 April 2012 - 08:27 AM

if just looking for a hydrolic park feature and dont want a drift brake u can just plumb one of these in the rear. i used to put them on sand cars adn stuff all day long. all u do is put it in line like done above. when u park. hold ur brake pedal down, hold the button down and release the pedal. it hold the fluid in the line. to release all you do it push the pedal down and when the pressure ig reater in front of the unit it pops open. they work great.and a lil cheaper.

heres a name brand one, u can get them cheaper for a no name one

http://www.jamarperf...pohjnht2e1svt62

Ratsun: where its no longer a debate of function > form

but a debate between Down syndrome ingenuity > someone taking a shit in the gas tank


you read my post like a woman would, interpreting.... not actually reading.

wait skib loves the cock

Should I do it to myself or get skib to hammer me?

Ever hear that saying about people in glass houses Syncro?


Ill make a special trip to cali and find your ratty K5 wearing slut bag of a datto




Take some time off, make your signature a little longer...everything will work out







i kind of want to be in your sig party/orgy





















#16 nustad

nustad

    Advanced Member

  • Members
  • PipPipPip
  • 113 posts
  • Location:Sahuarita, Arizona
  • Cars:68' 510 Wagon: 71' 510 2dr: 72' 510 4dr

Posted 11 November 2012 - 02:00 PM

Has anyone ever seen a Park Loc hydraulic e-brake? If I understand how this works correctly it is a really cheap hydraulic e-brake. Any ideas feedback?
http://www.appletree...s/00-3155-0.pdf
Posted Image

#17 datsunfreak

datsunfreak

    Senior Member

  • Senior Member
  • PipPipPipPipPip
  • 8,338 posts
  • Location:Arlington, TX
  • Cars:'73 1200 Coupe, '68 2000 Roadster

Posted 11 November 2012 - 02:16 PM

Has anyone ever seen a Park Loc hydraulic e-brake? If I understand how this works correctly it is a really cheap hydraulic e-brake.


That's what the post right above yours was about. It's not an e-brake, it's a line lock. Two different things. One, the "e" in e-brake means "emergency". Something you can use in case of hydraulic failure to safely stop the car. Line locks are either very basic park brakes (when used in the rear), or for drag racing (when used on the front brakes).

And I hate to argue semantics, but to the OP this set-up is a "parking brake", not an "emergency brake". In the event of an "emergency" hydraulic failure, this brake isn't doing much of anything.


Mind you, my 1200 has one and my 210 will have one, so... :rofl:

It's your car, just don't ruin it.




#18 socaldatsun

socaldatsun

    Senior Member

  • Senior Member
  • PipPipPipPip
  • 634 posts
  • Location:Imperial Beach
  • Cars:1971 Datsun 521

Posted 15 January 2013 - 09:51 AM

Just did mine last week pretty easy but a tight fit in my 521. Haven't bled the system yet.
F8E28807-4094-4FA0-88C0-1C731364A454-150

#19 Kirden

Kirden

    Senior Member

  • Senior Member
  • PipPipPipPip
  • 1,656 posts
  • Location:Macon, Georgia
  • Cars:78 Datsun B210, 2010 xB

Posted 17 January 2013 - 06:48 PM

This modification is very nice. If I didn't want a bench seat for the 620 this would be on the list. 620 with an ebrake for some drift weekends? YAY :devil:



Also, I love that 521 socaldatsun. Sending you a PM for a quick question.



#20 h190

h190

    Senior Member

  • Banned
  • PipPipPipPip
  • 314 posts
  • Location:datsunland
  • Cars:jap

Posted 18 January 2013 - 07:23 AM

620 qould be sweet, although I cant find any bucket seats.
