This is my KA24DE swap and 77 620 Kingcab refresh.

I've had this truck in storage for a while...now it's time to clear out the unit.

Truck as purchased for $100 a few years ago, it's been stored inside since then. Some of you guys might remember this one from the 'Dude leave a note' thread on NWDE.

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

5-Speed and diff from a 1983 720 KC with the Z24

Posted Image

Got the truck and motor to the house on May 4th 2010.

Posted Image

Posted Image

Better shot of theKA24DE going in.

Posted Image

Smokin' Joe's House of Datto's

Member- *Japanese Trucking Association*

**DATSUN FAQ** ~ If ya know it, post it ~ If ya don't know it, learn it ~

ratsun.net rising sun stickers                     ratsun business cards order thread

620 KA24 Motor Mount Swap Brackets

1977 620 KingCab Deluxe KA24DE Swap - Refresh and cleanup
1978 620 kingcab 4x4 - KA24E SAS w/Dana 44 front and Toyota rear

1967 RL411 Station Wagon



Whenever I think that I'm out of my mind for putting this much time and money into an old Datsun, all I have to do is look some of your threads to know that I'm not nearly as whack as you are.

You're going to skin a few knuckles, stand up too fast and bump your head, hunt around the floor for the nuts and bolts you dropped, invent a few new cuss words and when you're finished you'll say "That wasn't so hard after all!"


#2 ]2eDeYe

]2eDeYe

    Bastard!

  • User Administrator
  • 16,873 posts
  • Location:Marysville, WA
  • Cars:78 620 KC, 77 620 KC, 72 CJ5, 04 G35 coupe mmmm

Posted 11 June 2010 - 08:06 AM

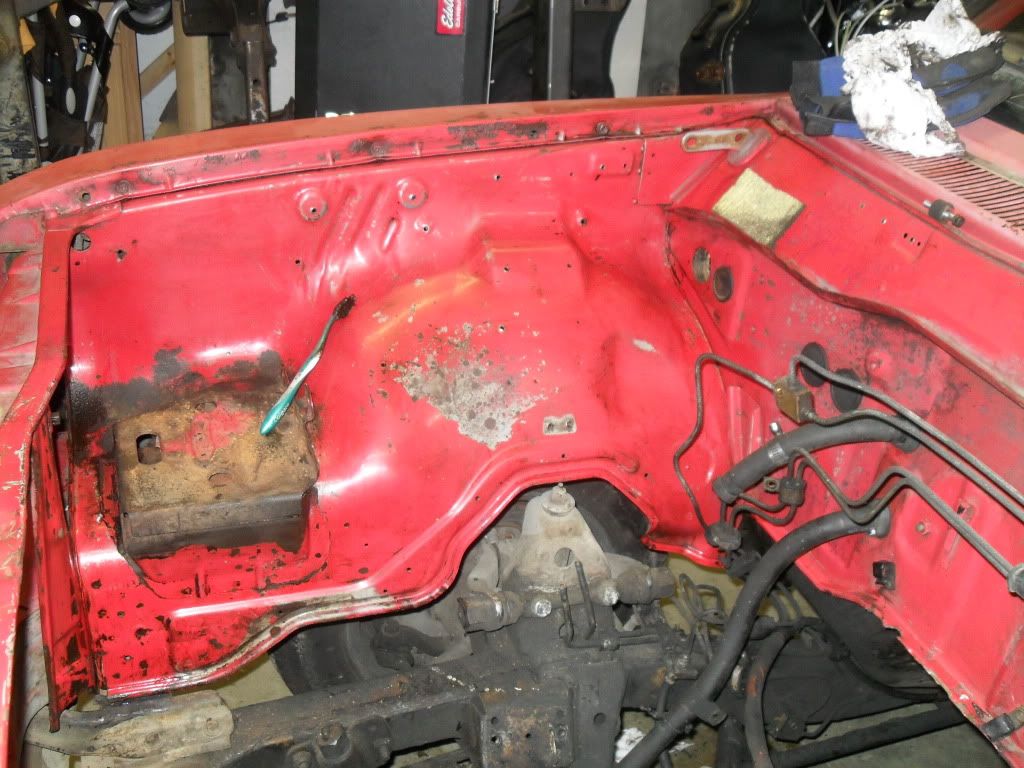

Not sure why people used the tar based undercoating...it sucks. Whoever did it to this truck sucks...but, it's coming clean.

Before:

Posted Image

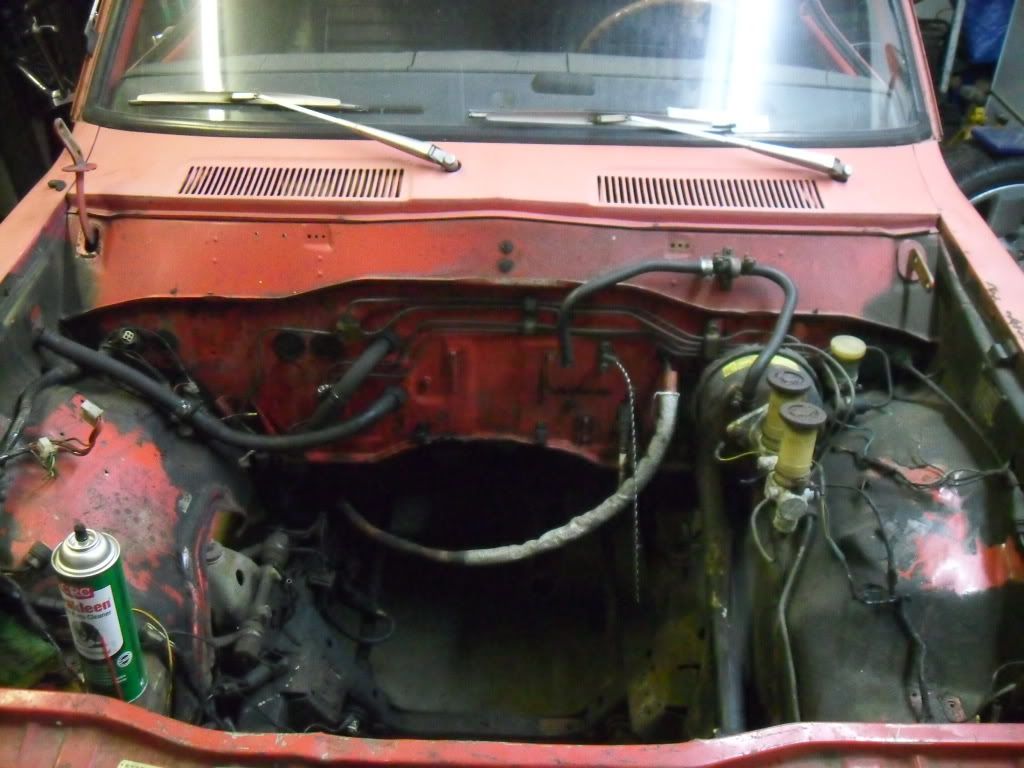

End of the first day of cleaning:

Posted Image

Fun shit...chemicals :D

Now I have a set deadline, on May 13th I registered the truck for Canby on June 13th. :D

Posted Image

My buddy Brad came over that night and lent a hand, thanks buddy. While I was scraping and playing with more chemicals he did some disassembly and inspection for me.

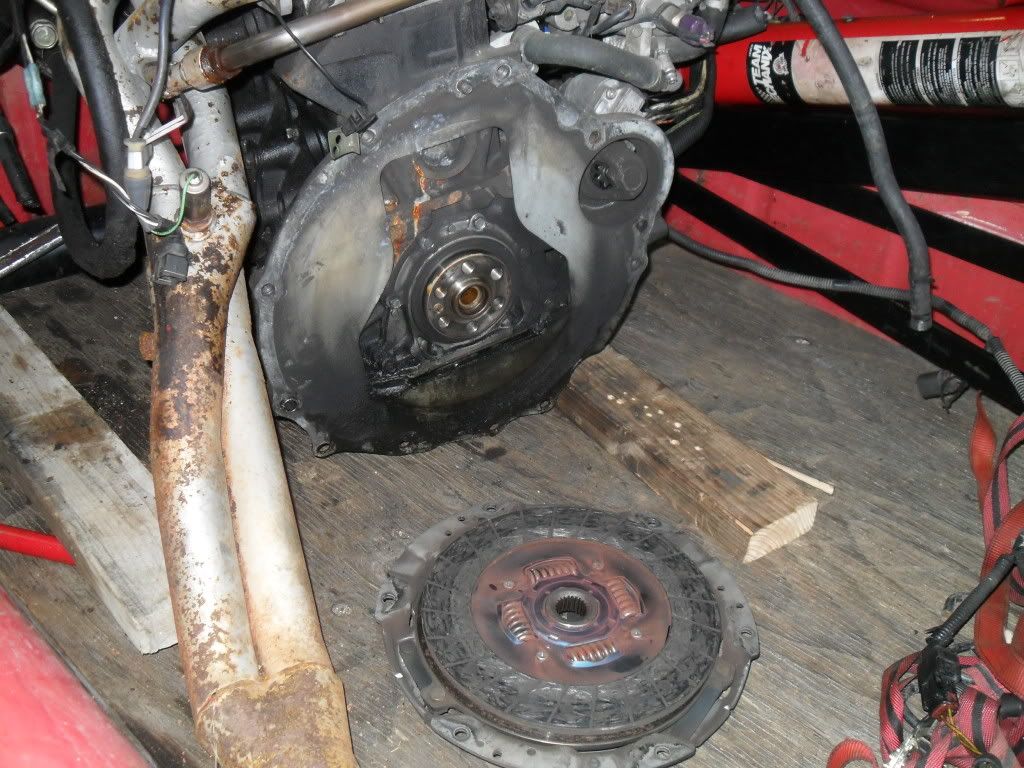

He pulled the trans off the motor and the clutch. The clutch looked brand new on the outside, but was nicely burnt in a couple places.

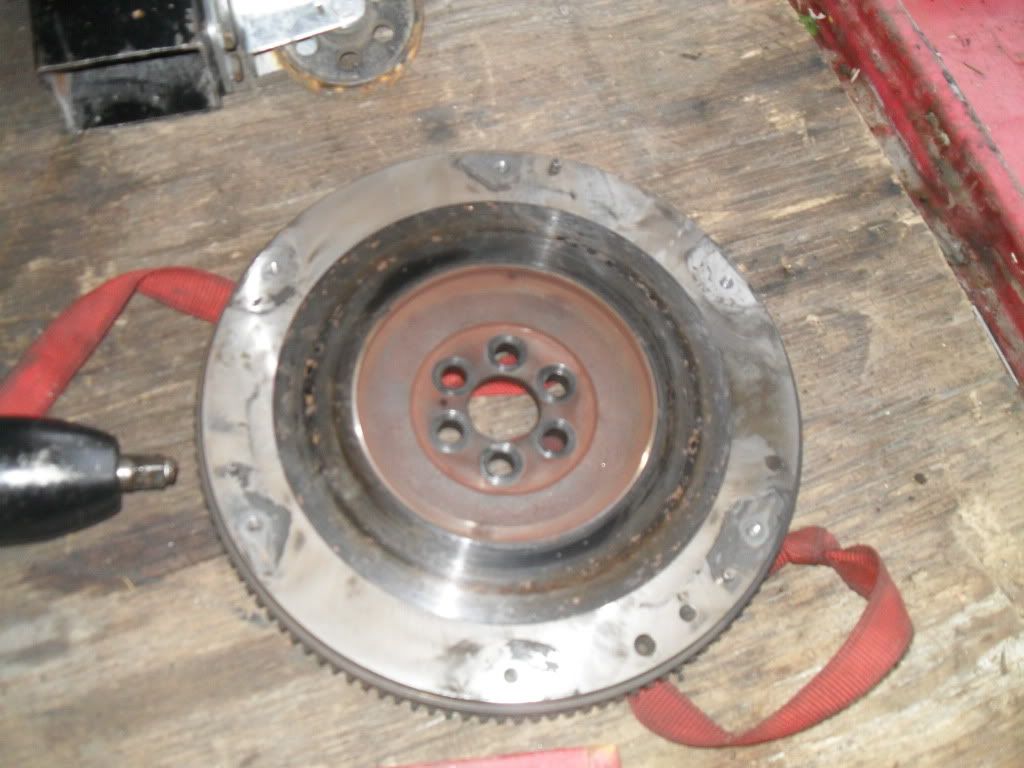

I got the flywheel resurfaced, a new clutch and gaskets and seals for the motor.

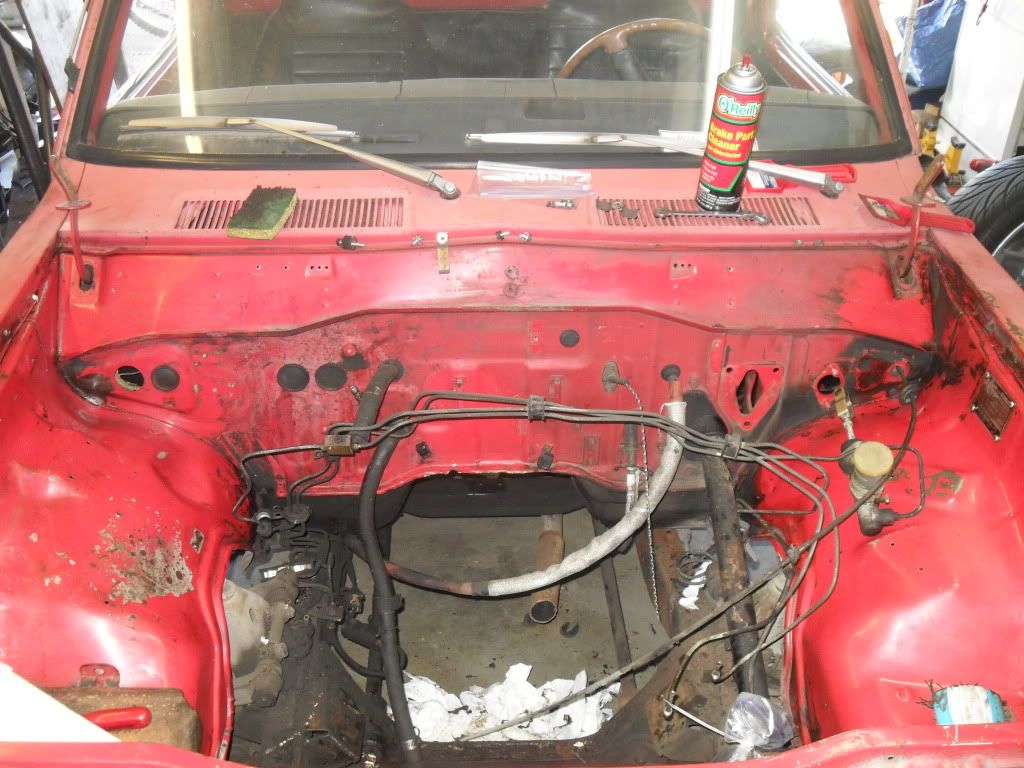

Here's some pic's :thumbs:

Posted Image

Posted Image

Posted Image

Got the trans and the most of the parts clean.

There was actually I nice looking transmission under 27 years of grime.

Posted Image

Posted Image

Picked up the stuff to delete the power steering.

Posted Image

Smokin' Joe's House of Datto's

Member- *Japanese Trucking Association*

**DATSUN FAQ** ~ If ya know it, post it ~ If ya don't know it, learn it ~

ratsun.net rising sun stickers                     ratsun business cards order thread

620 KA24 Motor Mount Swap Brackets

1977 620 KingCab Deluxe KA24DE Swap - Refresh and cleanup
1978 620 kingcab 4x4 - KA24E SAS w/Dana 44 front and Toyota rear

1967 RL411 Station Wagon



Whenever I think that I'm out of my mind for putting this much time and money into an old Datsun, all I have to do is look some of your threads to know that I'm not nearly as whack as you are.

You're going to skin a few knuckles, stand up too fast and bump your head, hunt around the floor for the nuts and bolts you dropped, invent a few new cuss words and when you're finished you'll say "That wasn't so hard after all!"


#3 ]2eDeYe

]2eDeYe

    Bastard!

  • User Administrator
  • 16,873 posts
  • Location:Marysville, WA
  • Cars:78 620 KC, 77 620 KC, 72 CJ5, 04 G35 coupe mmmm

Posted 11 June 2010 - 08:07 AM

Made a little progress the weekend of the 24th...then I rolled it out of the garage and got ready for my annual Memorial Weekend Camping Trip.

Here's the few pics I took of what went down.

Posted Image

Posted Image

Had to pick up some more exhaust washers and nuts. Thanks for the nuts Frank. :lol:

Posted Image

Drilled the starter, both the starter and the trans are threaded....The next starter for it will have to be from a 720.

Posted Image

Posted Image

Removed the front crossmember and the center link for clearance.

Posted Image

Posted Image

Got the motor set.

Posted Image

Posted Image

I'm gonna flip the centerlink for more oil pan clearance. Looks like it will just need some slight massaging after the link is flipped.

Smokin' Joe's House of Datto's

Member- *Japanese Trucking Association*

**DATSUN FAQ** ~ If ya know it, post it ~ If ya don't know it, learn it ~

ratsun.net rising sun stickers                     ratsun business cards order thread

620 KA24 Motor Mount Swap Brackets

1977 620 KingCab Deluxe KA24DE Swap - Refresh and cleanup
1978 620 kingcab 4x4 - KA24E SAS w/Dana 44 front and Toyota rear

1967 RL411 Station Wagon



Whenever I think that I'm out of my mind for putting this much time and money into an old Datsun, all I have to do is look some of your threads to know that I'm not nearly as whack as you are.

You're going to skin a few knuckles, stand up too fast and bump your head, hunt around the floor for the nuts and bolts you dropped, invent a few new cuss words and when you're finished you'll say "That wasn't so hard after all!"


#4 ]2eDeYe

]2eDeYe

    Bastard!

  • User Administrator
  • 16,873 posts
  • Location:Marysville, WA
  • Cars:78 620 KC, 77 620 KC, 72 CJ5, 04 G35 coupe mmmm

Posted 11 June 2010 - 08:13 AM

Finished up the motor mounts last night. I sectioned them and then dropped them 5/8". Then reinforced them with some 1/8 sheet.

Pics :D

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Dropped my steering components off on June 4th, cost about $120. Spent $240 in nickle and dime stuff on the 5th. Had to get a truck slave cylinder as the 240 one puts a kink in the hose and smashes it against the torsion bar.

Brad came over ont the 6th and we got the brakes adjusted and bleed, nice solid pedal. New 720 accelerator cable is installed. Got the fuel lines ran at the motor, still have to splice in the new pump by the tank. Drained and flushed the tank and put some fresh fuel in it.

Smokin' Joe's House of Datto's

Member- *Japanese Trucking Association*

**DATSUN FAQ** ~ If ya know it, post it ~ If ya don't know it, learn it ~

ratsun.net rising sun stickers                     ratsun business cards order thread

620 KA24 Motor Mount Swap Brackets

1977 620 KingCab Deluxe KA24DE Swap - Refresh and cleanup
1978 620 kingcab 4x4 - KA24E SAS w/Dana 44 front and Toyota rear

1967 RL411 Station Wagon



Whenever I think that I'm out of my mind for putting this much time and money into an old Datsun, all I have to do is look some of your threads to know that I'm not nearly as whack as you are.

You're going to skin a few knuckles, stand up too fast and bump your head, hunt around the floor for the nuts and bolts you dropped, invent a few new cuss words and when you're finished you'll say "That wasn't so hard after all!"


#5 ]2eDeYe

]2eDeYe

    Bastard!

  • User Administrator
  • 16,873 posts
  • Location:Marysville, WA
  • Cars:78 620 KC, 77 620 KC, 72 CJ5, 04 G35 coupe mmmm

Posted 11 June 2010 - 08:14 AM

Got the steering column and the idler arm swapped for the reamed parts (couldn't get the pitman off and I had a spare column). I only had to clearance the oil pan a little. Center link flip is a success. I also picked up a truck slave cylinder and hose, the new slave blew a seal as soon as I bled it.

Anyways here's some pics from the last couple days. :D

Fuel connected to the motor

Posted Image

Drivers motor mount

Posted Image

Passenger motor mount

Posted Image

Titans...cause Nuff is a slacker getting me my 15"s

Posted Image

Looks almost stock.

Posted Image

Slave cylinder issues...gotta use the truck one...

Posted Image

Posted Image

Reversed center link taper

Posted Image

Steering column out.

Posted Image

New idler arm with reversed taper

Posted Image

1/4" clearance all the way around at full lock. :thumbs:

Posted Image

Posted Image

Smokin' Joe's House of Datto's

Member- *Japanese Trucking Association*

**DATSUN FAQ** ~ If ya know it, post it ~ If ya don't know it, learn it ~

ratsun.net rising sun stickers                     ratsun business cards order thread

620 KA24 Motor Mount Swap Brackets

1977 620 KingCab Deluxe KA24DE Swap - Refresh and cleanup
1978 620 kingcab 4x4 - KA24E SAS w/Dana 44 front and Toyota rear

1967 RL411 Station Wagon



Whenever I think that I'm out of my mind for putting this much time and money into an old Datsun, all I have to do is look some of your threads to know that I'm not nearly as whack as you are.

You're going to skin a few knuckles, stand up too fast and bump your head, hunt around the floor for the nuts and bolts you dropped, invent a few new cuss words and when you're finished you'll say "That wasn't so hard after all!"


#6 ]2eDeYe

]2eDeYe

    Bastard!

  • User Administrator
  • 16,873 posts
  • Location:Marysville, WA
  • Cars:78 620 KC, 77 620 KC, 72 CJ5, 04 G35 coupe mmmm

Posted 11 June 2010 - 08:17 AM

Icehouse came over last night and wired the motor, fuel pump and fan in for me. Dropped it off at the exhaust shop at 11pm (way past my bedtime) to get a new downpipe made. Runs like a bat outta hell. Loud as fuck :lol:

Thanks again Jeff, you fucking ROCK!!
